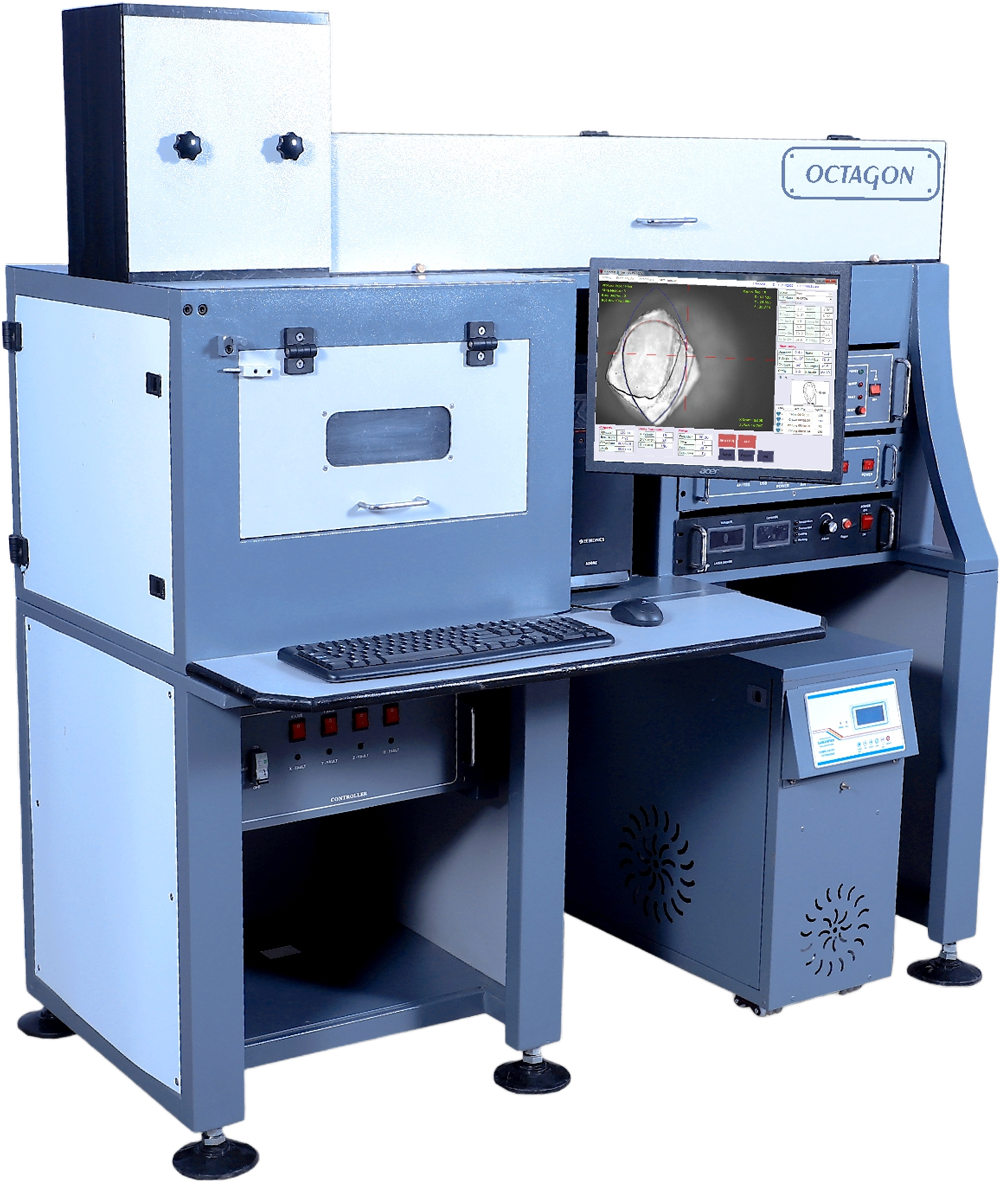

Octagon - Fancy Galvo Expert
Process
-
1
Import .plt & .dfx file for cut custom shape diamond.
-
2
Only machine which delivers excellent and accurate Fancy cutting.
-
3
Capable to cut Fancy shapes with accurate dimensions.
-
4
Accurate shape gives minimum polishing time and maximum Profit.
-
5
Minimum setting time and easy operation enables fast production.
-
6
Dedicated parameters files for different shapes and sizes for easy operation.
-
7
Different faceting patterns for round shape.
-
8
QR code reader for direct entry of parameters.
-
9
Rugged and Heavy structure for minimum Vibrations.
-
10
Highest Up-time and Low maintenance cost.
-
Laser: Nd:YAG DPSSL
-
Spatial Mode: TEM 00
-
Wavelength: 1064 nm
-
Polarization: Linear
-
Beam Roundness: >90%
-
Average Power: >16 W
-
Repetition Rate: 6-12 KHz
-
Cooling Water: Steam Distilled
-
Axis Travel: 130mm x 130mm x 70mm
-
Galvo Travel (X & Y): 10mm x 10mm
-
Resolution: 2 Micron
-
Accuracy: 2 Micron / 25mm
-
Repeatability: 2 Micron / 25Micron Bidirection
-
Driver: AC Servo & Stepper
-
Power Requirement: 220 VAC +10%,1 Phase,50Hz
-
Power Consumption: <2.5 KVA
-
Room Temperature: 240 C - 260C
-
Length x Width x Height: 1600mm x 650mm x1500mm
-
Weight: 380Kg
